CGA2VGA-PAM

Mike's CGA to VGA pinout adapter (Male HD15)

SKU: CGA2VGA-PAM

$6.95

Item is in stock. Ships in 1-2 days
Quantity:

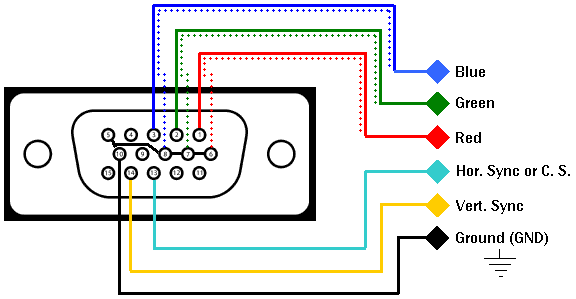

CGA to VGA pinout adapter (10-pin Arcade to Male HD-15)

This adapter is designed to plug directly into the GBS-8200 allowing you to hookup your existing standard arcade cabinet wiring, no splicing wires, no additional VGA cable required.

Features:
  • Convert 10-pin arcade standard pinout to VGA Male DB15.
  • Adapter is bi-direction VGA->CGA or CGA->VGA.
  • Allows use of a CGA connector with a VGA input on dual resolution LCD monitors.
  • Contains 10-pin and 15-pin connectors.
  • VR1, VR2 and VR3 allow adjusting the gain on the color signals.
  • Only the pinout is changed, does not convert the signals.
