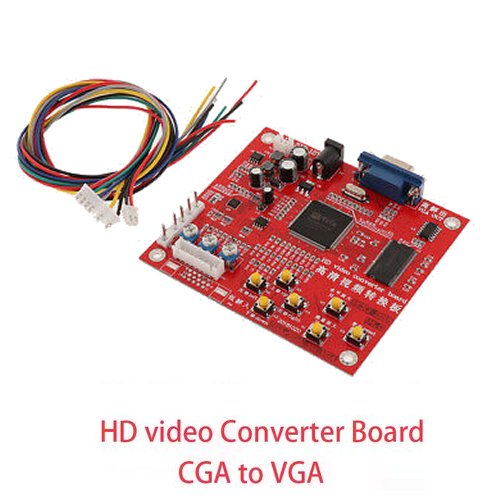

Simple 7 button interface: Up, Down, Left, Right, H Size, V Size and Reset The latest CGA/EGA/RGBS to VGA Arcade HD-Converter PCB allows all types of RGB, EGA or RGBS signals to be up-converter and display on a 31KHz PC VGA monitor, TFT monitor, LCD display, or HD-TV with VGA connection. No need to set dip switches in order to figure out the specific input frequency as all inputs are detected automatically! A great alternative to purchasing a expensive, heavy CGA monitor. Use this converter with an existing computer monitor or install a lightweight LCD display or even use to build your own supergun! The HD Video converter is a professional game converter, which support all games such as, Amusement, Play station, for Xbox, wii, etc. It can convert CGA/EGA/RGBS input Signal to the HD Monitors (CRT Monitor LCD Monitor PDP Monitor) with VGA interface (VGA video signal), and automatically scan CGA / EGA / YUV signal, VGA output signals. It will bring you much fun and convenience. Features:- Convert CGA/EGA/RGBS Component input Signal to VGA video signal
- Supports CGA/EGA/RGBS Signal Input.
- Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768).
- CGA/EGA/RGBS signal auto scan (15KHz, 24KHz).
- On Screen Display (English and Chinese).
- Supports image position control & image zoom control.
- Supports all types of VGA monitors (CRT, LCD, PDP, Projector, etc).
- Runs on 5-12VDC @ 2AMPs
|
